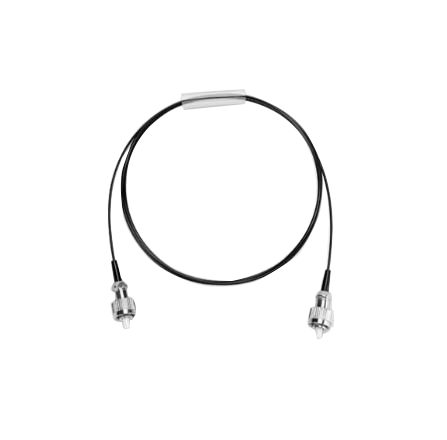

Multimode-Glasfaser-Patchkabel
Merkmale
- Geringe Einfügedämpfung
- Hohe Rückflussdämpfung
- Hohe Stabilität und Zuverlässigkeit
Anwendungen
- Faserlaser
- Fasersensor
- Faserkomponenten
Spezifikationen
| Parameters | Unit | Value | |
| Center Wavelength | nm | 850nm 1310nm 1550nm | |
| Connector type | – | FC,SC,LC,ST,MU etc | |
| Insertion Loss | dB | 0.30 | |
| Fiber Type | – | 62.5/125(OM1),50/125(OM2),50/125(OM3),50/125(OM4),105/125
NA0.22 |
|
| Power Handling | mW | ≤500 | |
| Polarization Dependent Loss | dB | ≤0.05 | |
| Durability | – | ≥1000 | |
|
Return Loss |
UPC Type | dB | ≥30 |
| PC Type | dB | ≥35 | |
| Operating Temperature | ℃ | 0 ~+70 | |
| Storage Temperature | ℃ | 40 ~+85 | |

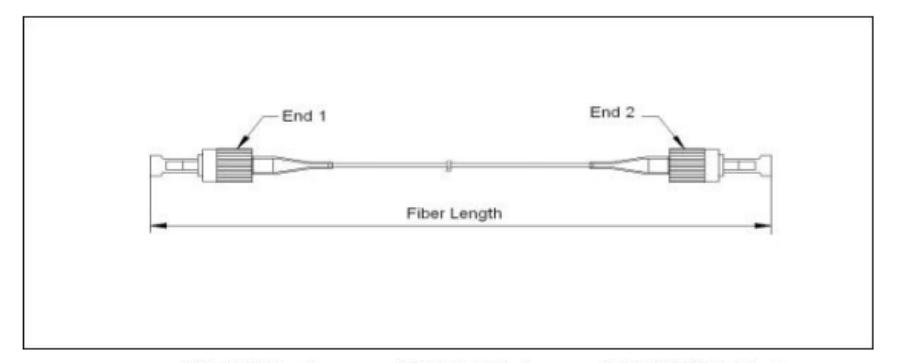

Dimensions
Ordering information
| Fiber Type | Wavelength | Fiber Type | Connector | Fiber Length |
| MM | 850nm
1310nm 1550nm
|
1=Bare fiber
2=900umLoose tube |
FC/PC
FC/APC SC/PC SC/APC ect |
0=0.5m
1=1m 2=2m ect |
