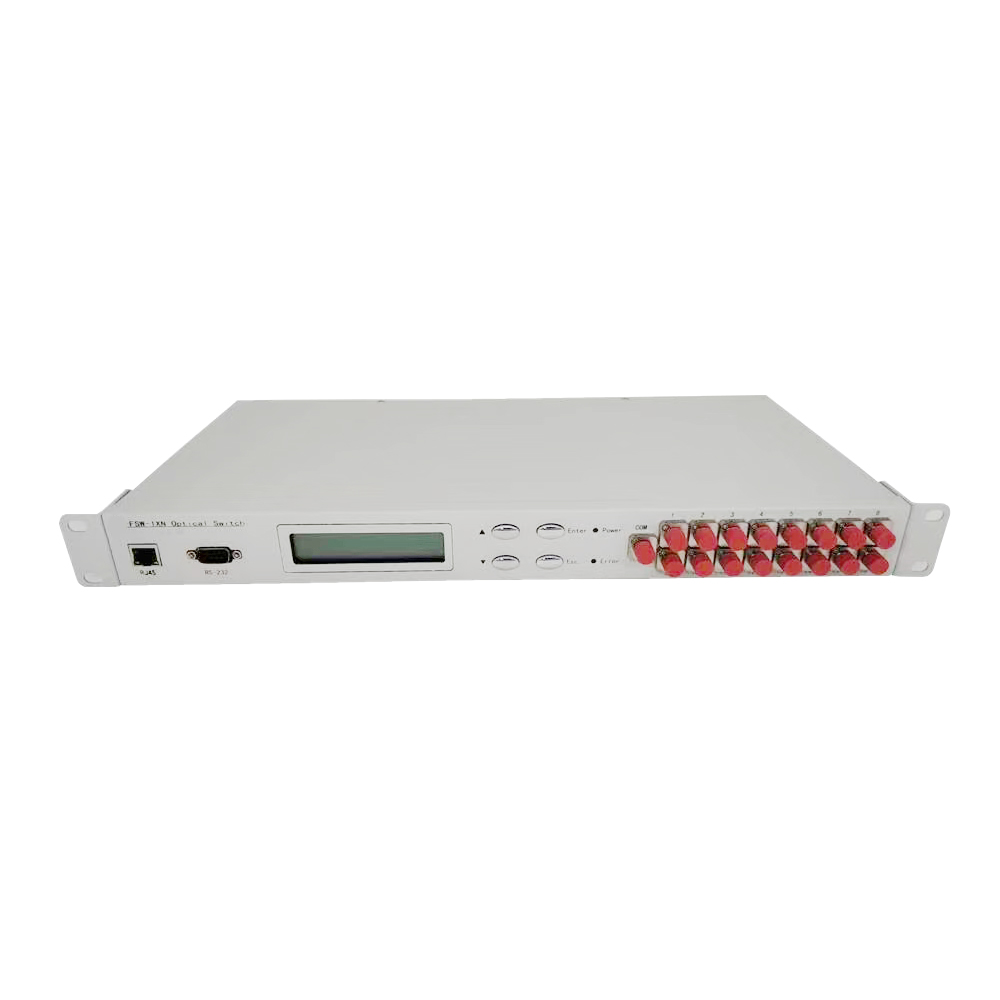

1X16 Rack Mount Optical Switch
Introduction
XH-FSW-1X16 rack-mount optical switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Features
◆Low insertion loss, Fast switching
◆SerialNet, High Reliability, High Stability
◆LED display panel. Visual display, Convenient operation
◆Transparent transmission signal. High stability and reliability
◆Channel and time interval of automatic scanning can be set up
◆ RS232 Control and RJ45 Ethernet Remote Management
Applications
◆ FITL
◆ Automatic Measurement
◆ Optical Network Remote Monitoring
◆ Cable Monitoring and Maintaining system
Specifications
| Parameters | Unit | Indicators |
| Unit Type | XH-FSW-1X16-U | |
| Wavelength Range | nm | 1260~1650nm |
| Test Wavelength | nm | 1550 nm |
| Insertion Loss | dB | Typ. ≤0.8dB,Max.≤1.5 dB |
| Repeatability | dB | ≤ ±0.02 |
| Return Loss | dB | ≥ 45 |
| Crosstalk | dB | ≥ 70 |
| WDL | dB | ≤ 0.25 |
| PDL | dB | ≤ 0.1 |
| Optical Power | mW | ≤ 500 |
| Switching Time | ms | ≤10 ms（adjacent channel） |
| Fiber Type | um | 9/125 |
| Connector | FC/PC | |
| Monitoring Port | RJ45 & RS-232 | |
| Working Power Supply
（Plug-type） |
V |
AC:85～ 265 (50/60Hz) |
| Power Consumption | W | ＜ 10 |
| Operating Temperature | ℃ | -5 ～ 55 |
| Size | mm | 1U:483 x 230 x 45 |
Panel to Explain

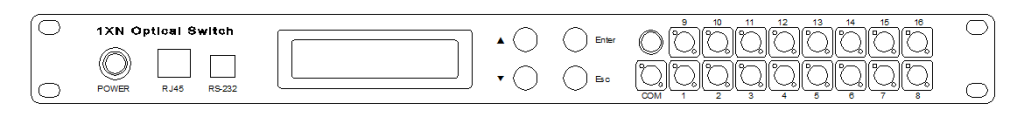

Front Panel
◆Power: Master switch of power supply
◆RJ45:Communications network management interface ;
◆RS-232: Rs- serial interface ; RS232 serial communication interface;
◆LCD:Devices that display information directly;
◆▲: Key to move up; ▼: Key to move down; Enter: Key to determine;
Esc: Key to cancel;
◆com,1~16:Fiber interface;
Back Panel
◆AC:100~240V: Power cord interface;
Default Setting
◆Address：01
◆RS-232：Baud rate:9600; Data bits:8 bit; Stop bit: 1 bit; Parity bit:NONE;
◆RJ45: IP：192.168.1.100 ; PORT：5000; TCP/IP:TCP Server and UDP
（Fixed port：18888）
