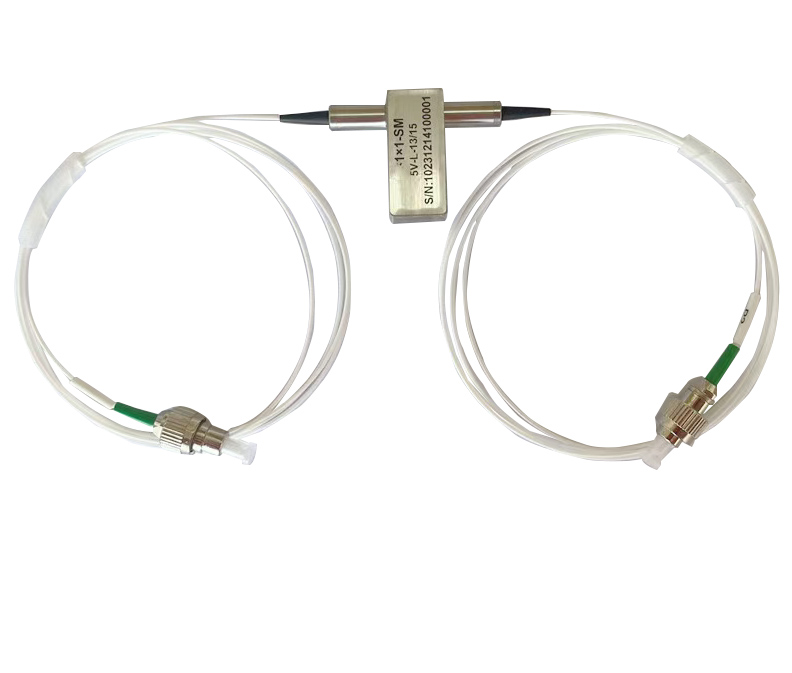

1X1 optical switch
XH-OSW-1×1 Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 1 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.
Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.
Features
- Low insertion loss, wide wavelength range
- Low channel crosstalk, high stability, high reliability
- Simple control, small size, easy to embed in circuit boards
- Selectable locking and non-locking control types
Applications
Channel Blocking
Configurable Add/Drop
System Monitoring
Instrumentation
Parameter
| Parameters | Parameter Value | |
| Model | XH-OSW-1X1 | |
| Insertion Loss（dB） | Typ：0.5 dB Max：1.0 dB | |
| Wavelength Range（nm） | 532~1064 nm | 1260~1650 nm |
| Wavelength testing（nm） | 532/650/780/850/980 nm | 1310/1490/1550/1625 nm |
| Return Loss（dB） | MM ≥ 30 dB SM ≥ 50dB | |
| Crosstalk（dB） | MM ≥ 35dB SM ≥ 55dB | |
| PDL（dB） | ≤0.05 | |
| WDL（dB） | ≤0.25 | |
| TDL（dB） | ≤0.25 | |
| Repeatability（dB） | ≤±0.02 | |
| Lifetime（Times） | ≥107 | |
| Switching Time（ms） | ≤8 | |
| Transmission power（mW） | ≤500 | |
| Operating Voltage（V） | 3 or 5 | |
| Operating Temperature（℃） | -20~+70 | |
| Storage Temperature （℃） | -40~+85 | |
| Weight | 16g | |
| Dimension（mm） | (L)27.0×(W)12×(H)8.2±0.2 | |
