1X2 Mechanical optical switch

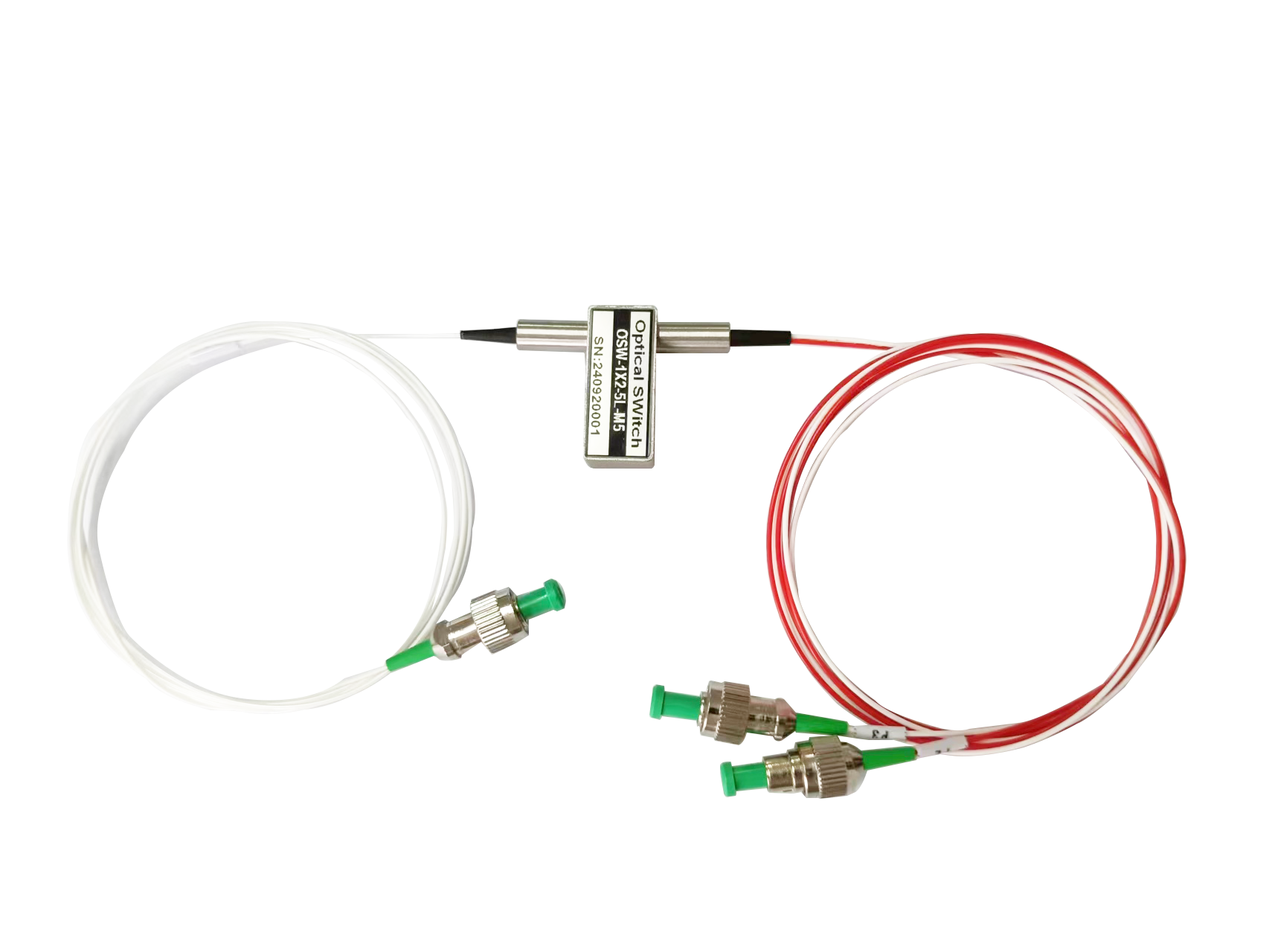

XH-OSW-1X2 mechanical optical switch is an optical path control device with the function of controlling the optical path and converting the optical path; it can realize 2 optical signal inputs and select the signal output of one of them (supporting bidirectional use). It has an important role in optical communication applications. Optical switch is mainly used for multiple optical monitoring of optical transmission system, automatic switching of multiple sources/detectors in LAN, and multi-point dynamic monitoring system of optical sensing Optical test system is used for optical fiber, optical devices, network and field engineering for optical cable testing; installation and commissioning of optical devices.
Features
- Low insertion loss, wide wavelength range
- Low channel crosstalk, high stability, high reliability
- Simple control, small size, easy to embed in circuit boards
- Selectable locking and non-locking control types
Parameter
| Parameters | Parameter Value | |
| Model | XH-OSW-1X2 | |
| Insertion Loss（dB） | Typ：0.5 dB Max：1.0 dB | |
| Wavelength Range（nm） | 532~1064 nm | 1260~1650 nm |
| Wavelength testing（nm） | 532/650/780/850/980 nm | 1310/1490/1550/1625 nm |
| Return Loss（dB） | MM ≥ 30 dB SM ≥ 50dB | |
| Crosstalk（dB） | MM ≥ 35dB SM ≥ 55dB | |
| PDL（dB） | ≤0.05 | |
| WDL（dB） | ≤0.25 | |
| TDL（dB） | ≤0.25 | |
| Repeatability（dB） | ≤±0.02 | |
| Lifetime（Times） | ≥107 | |
| Switching Time（ms） | ≤8 | |
| Transmission power（mW） | ≤500 | |
| Operating Voltage（V） | 3 or 5 | |
| Operating Temperature（℃） | -20~+70 | |
| Storage Temperature （℃） | -40~+85 | |
| Weight | 16g | |
| Dimension（mm） | (L)27.0×(W)12×(H)8.2±0.2 | |
