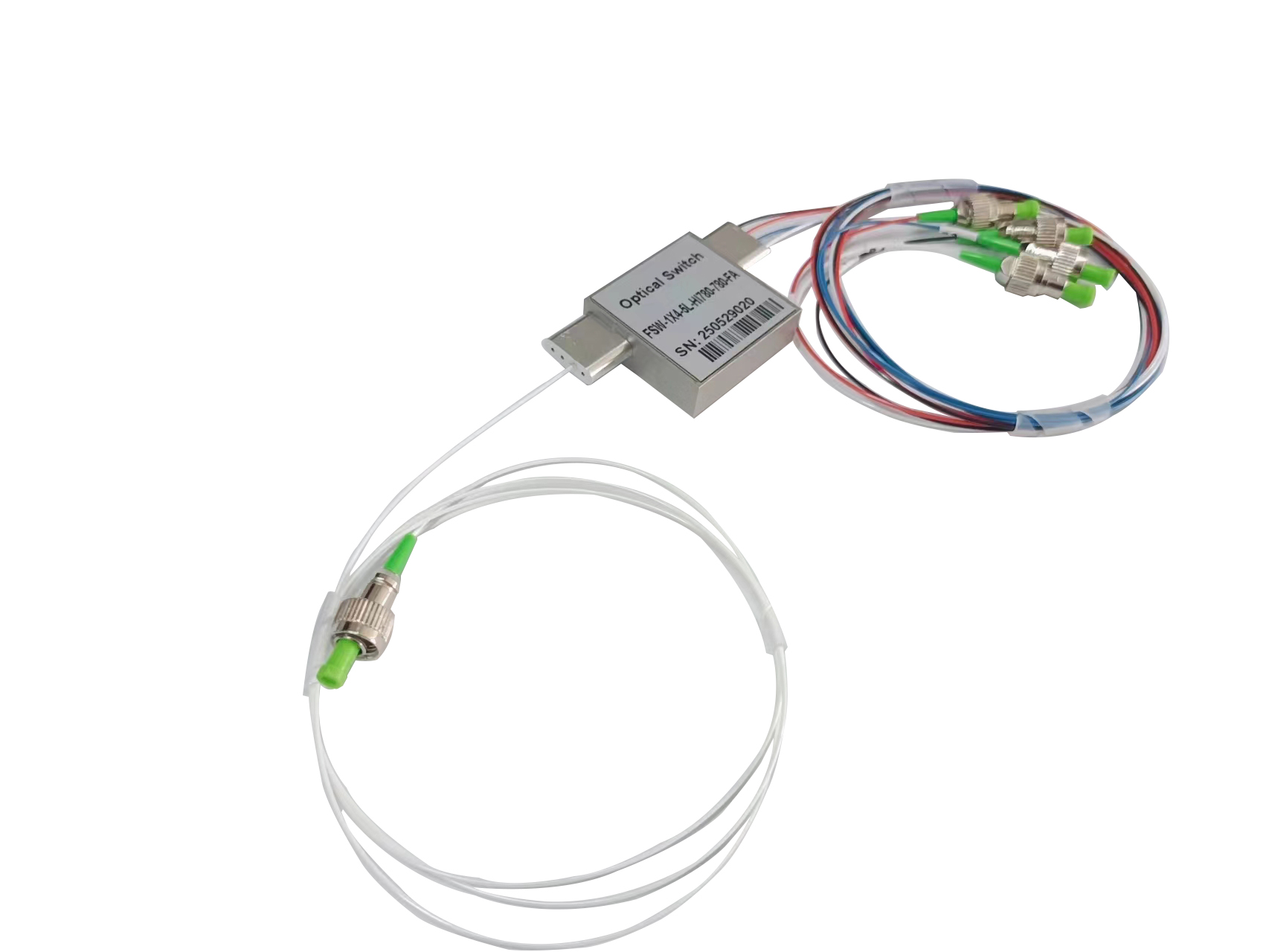

1X4 Mini Mechanical Optical Switch
Description:
The 1X4 fiber optical switch connects optical channels by redirecting an in- coming optical signal into a selected output fiber. This is achieved by using a patent pending op to-mechanical configuration activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors, and the new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost. Electronic driver is available for this series of switches.
Features：
- Unmatched Low Cost
- Low Optical Distortions
- High Isolation
- High Reliability
- Epoxy-Free Optical Path
Specifications
| Parameters | Specifications | Unit |
| Operating Wavelength | 1260~1620(SM) | nm |
| Insertion Loss | ≤1.2 | dB |
| Wavelength Dependent Loss | ≤0.25 | dB |
| Polarization Dependent Loss | ≤0.05 | dB |
| Temperature Dependent Loss | ≤0.20 | dB |
| Return Loss | SM≥50 MM≥30 | dB |
| Cross Talk | SM≥55 MM≥35 | dB |
| Switch Time | ≤8 | ms |
| Repeat ability | ≤±0.02 | dB |
| Durability | ≥107 | times |
| Operating Voltage | 3 or 5 | V |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | －20~＋70 | ℃ |
| Storage Temperature | －40~＋85 | ℃ |
| Optical Power | 10 | W |
| Dimension | 33.4L×33.1W×10.0H | mm |
