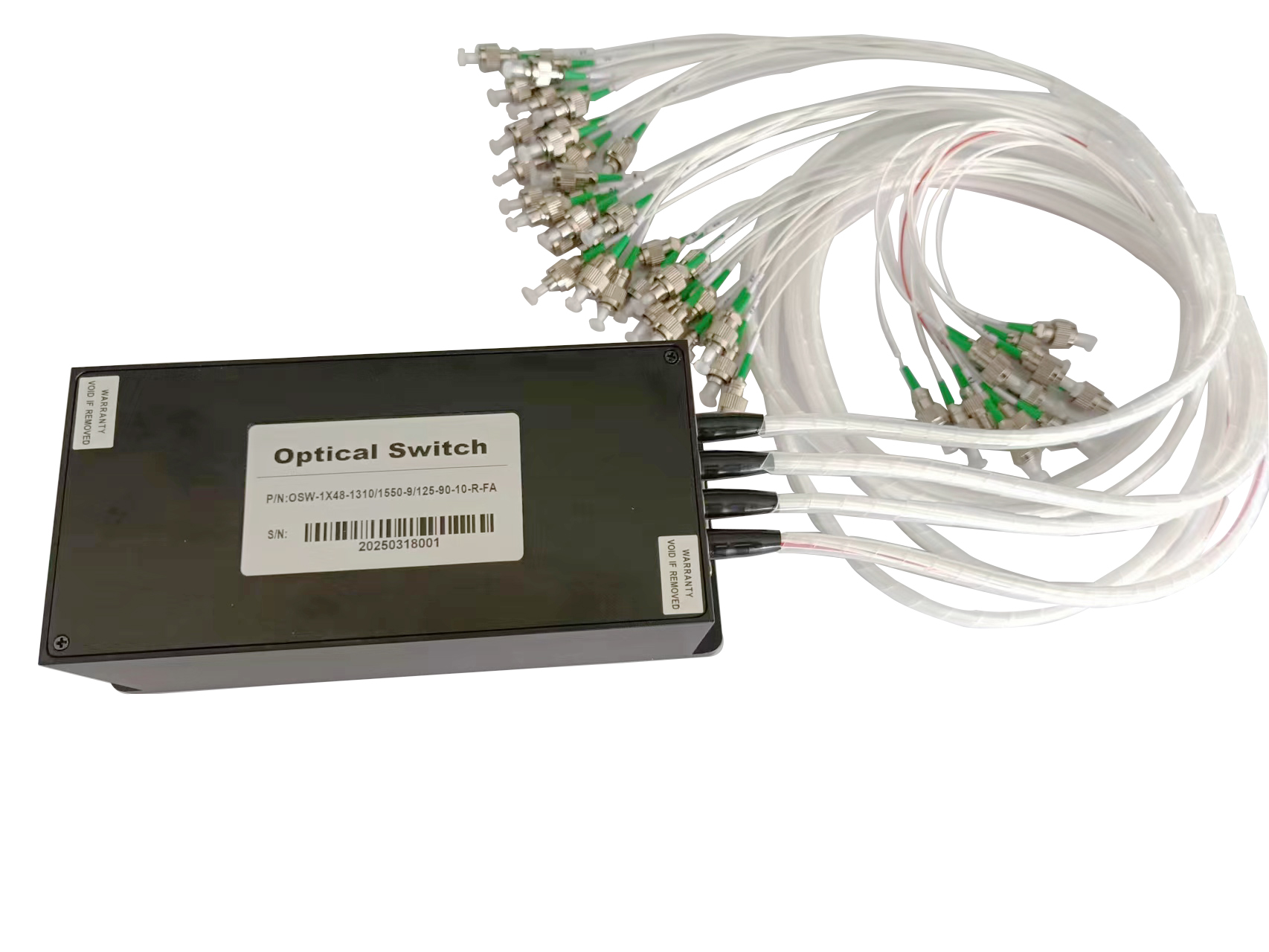

1X48 Mechanical optical switch module
Description
XH-OSW-1×48 mechanical optical switch module is a kind of light path control equipment. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.
Feratures
- Low Loss and High Reliability
- Serial Interface (RS-232)
- Modularized Design
- Epoxy-free on Optical Path
Applications
- Ring Network
- Remote Monitoring in Optical Network
- Testing of FiberOptical Component
Specifications
| Parameter | Parameter Values |
| Model | XH-OSW-1X48 |
|
Insertion Loss |
Typ.:0.8 dB Max.:1.2dB |
| Wavelength Range | 1260~1650 nm |
| Test Wavelength | 1550nm |
| Fiber Type | 9/125um |
| Return Loss | ≥55 dB |
| Crosstalk | ≥ 70 dB |
| PDL | ≤0.05 dB |
| WDL | ≤0.25 dB |
| TDL | ≤0.25 dB |
| Repeatability | ≤0.02 dB |
| Lifetime | >107 |
| Switching Time | ≤10 ms （Adjacent channel） |
| Optic Power | ≤500 mW |
| Connector | FC、LC、SC、ST |
| Control Mode | RS232 |
| Working Power Supply | 5V/1000 mA |
| Product Sze | 135x60x37 |
| Operating Temperature | -20 ℃ to +70 ℃ |
| Operating Temperature | -40 ℃ to +85 ℃ |
