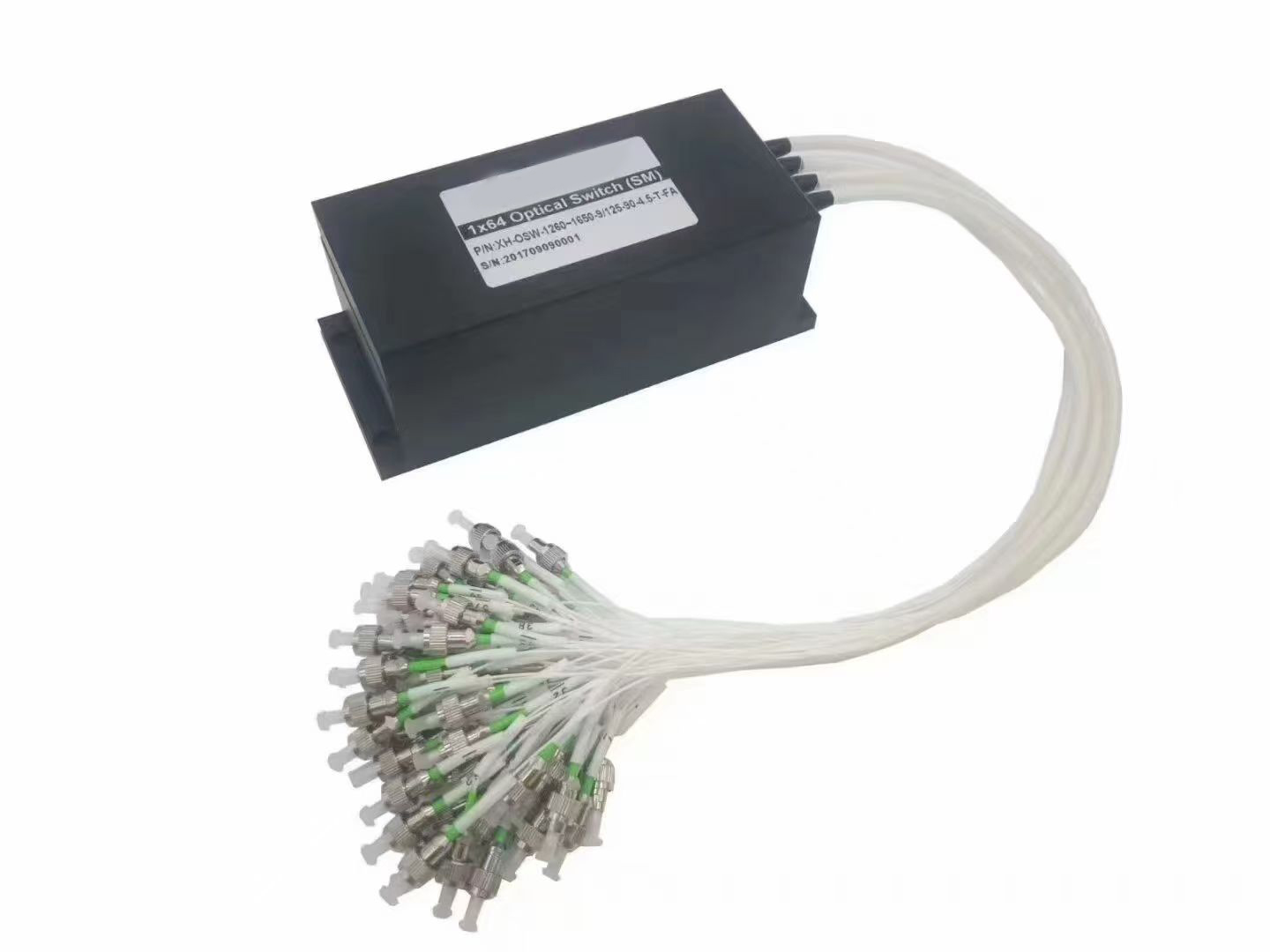

1X64 Mechanical optical switch module
Description
XH-OSW-1X64 Mechanical optical switch module is an optical path control device, which has the role of controlling the optical path and converting the optical path. It has an important role in optical communication applications. The optical switch is mainly used in optical transmission system for multiple optical monitoring, LAN multi-source/detector automatic switching and optical sensing multi-point dynamic monitoring system optical test system for optical fiber, optical devices, network and field engineering optical cable testing; optical device installation and adjustment.
Features
- Low insertion loss, wide wavelength range
- Low channel crosstalk, high stability, high reliability
- Proprietary technology, no glue in the optical path
- Locking and non-locking control types are available
Specification
| Parameter | Parameter Values | |
| Model | XH-OSW-1XN | |
|
Insertion Loss |
1<N≤64 | |
| Typ：0.5 dB Max：1.0 dB | ||
| Wavelength Range | 532~1064 nm | 1260~1650 nm |
| Wavelength Testing | 532/650/780/850/980 nm | 1310/1490/1550/1625 nm |
| Return Loss | MM ≥ 30 SM ≥ 50 | |
| Crosstalk | MM ≥ 70 SM ≥ 70 | |
| PDL | ≤0.05dB | |
| WDL | ≤0.25 dB | |
| TDL | ≤0.25 dB | |
| Repeatability | ≤0.02 dB | |
| Lifetime | ≥107 | |
| Switching Time | ≤8 ms | |
| Transmission Power | ≤500 mW | |
| Connector | FC、LC、SC、ST | |
| Control | TTL | |
| Operating Voltage | 5V | |
| Working Current | 500mA | |
| Operating Temperature | -20 ℃ ~ +70 ℃ | |
| Storage Temperature | -40 ℃ ~ +85 ℃ | |
